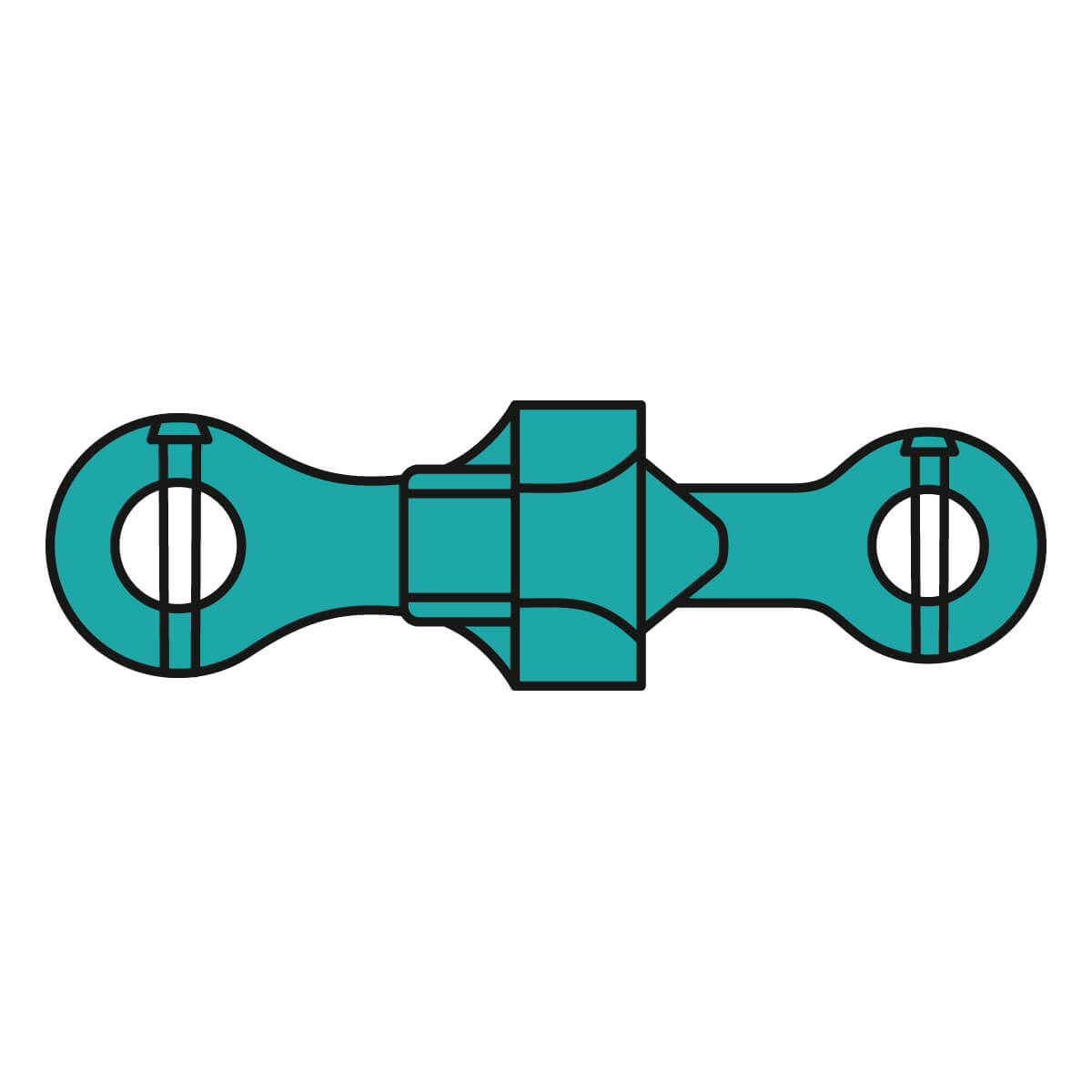

Swivel Shackle Type-B

Swivel Shackles, Type-B, Grade 3, size ranging from 40 mm to 81 mm

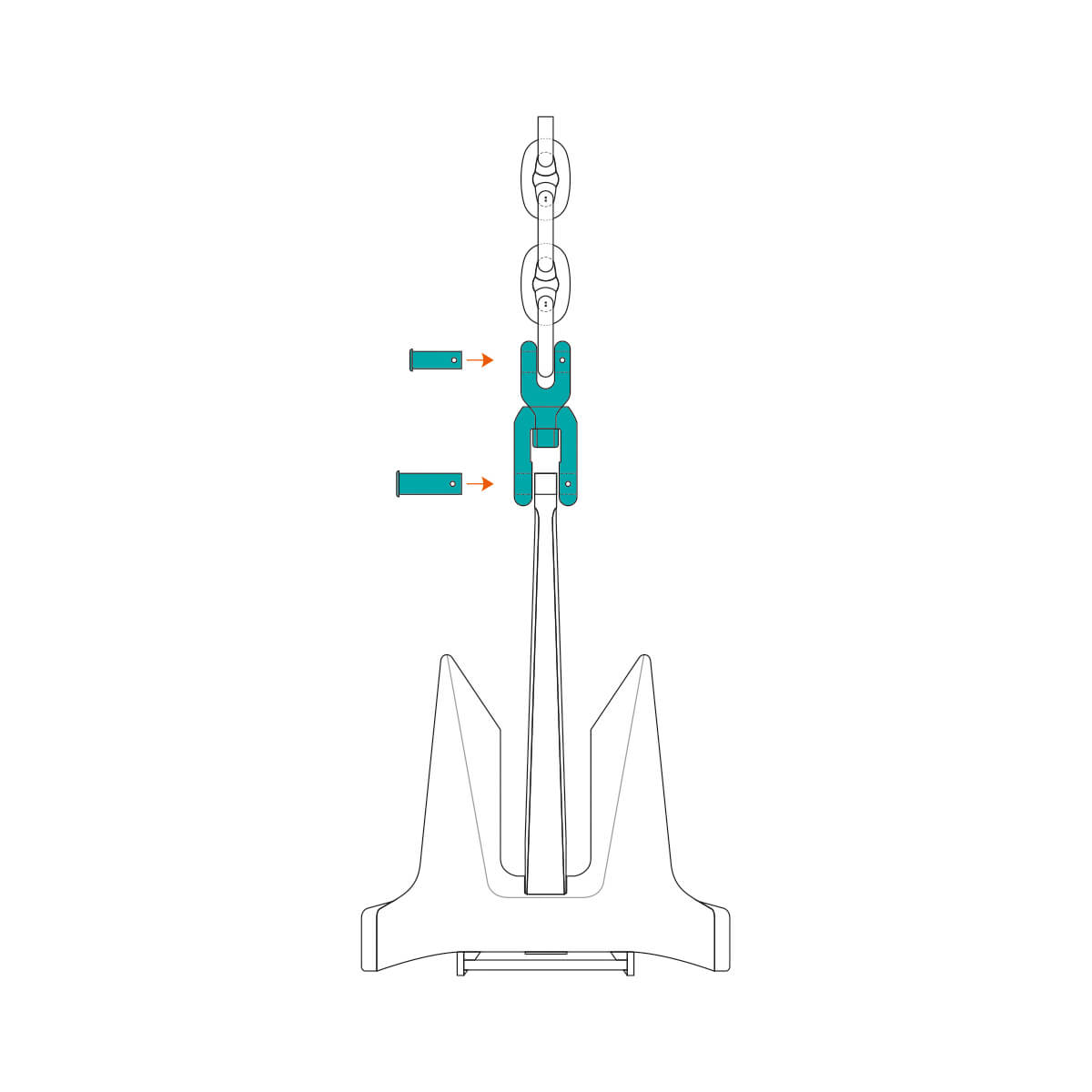

Swivel Shackles are connected directly to the anchor shanks without using a Crown Shackle and Anchor D-End Shackles. While the larger side of the pin goes through the shank’s bore, the smaller pin is directly connected to the first common link of the anchor chain cable. Crown Shackles, Anchor D-end Shackles, and Swivel Forerunners remain unnecessary with this setup.

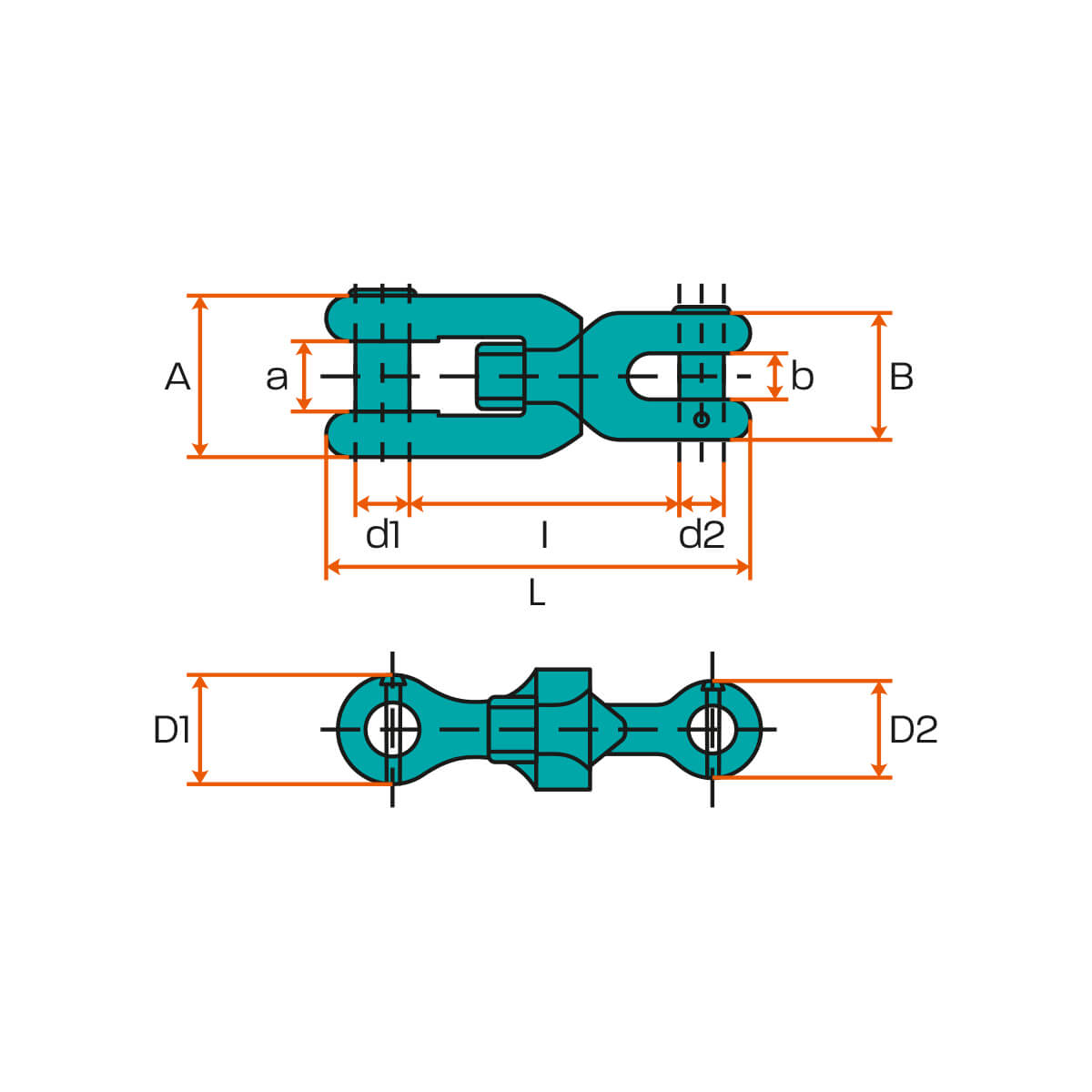

Technical Data

Chain Dia (mm)	A (mm)	a (mm)	B (mm)	b (mm)	d1 (mm)	d2 (mm)	D1 (mm)	D2 (mm)	L (mm)	l (mm)	Weight (kg)
40	200	88	160	56	68	52	140	120	534	344	46
42	210	92	168	59	71	55	147	126	561	361	53
44	220	97	176	62	75	57	154	132	588	378	61
46	230	101	184	64	78	60	161	138	615	396	70
48	240	106	192	67	82	62	168	144	641	413	79
50	250	110	200	70	85	65	175	150	668	430	89
52	260	114	208	73	88	68	182	156	695	447	101
54	270	119	216	76	92	70	189	162	721	464	113
56	280	123	224	78	95	73	196	168	748	482	126
58	290	128	232	81	99	75	203	174	775	499	140
60	300	132	240	84	102	78	210	180	802	516	155
62	310	136	248	87	105	81	217	186	828	533	171
64	320	141	256	90	109	83	224	192	855	550	188
66	330	145	264	92	112	86	231	198	882	568	206
68	340	150	272	95	116	88	238	204	908	585	225
70	350	154	280	98	119	91	245	210	935	602	246
73	365	161	293	102	123	95	255	219	975	628	278
76	380	167	304	106	130	99	266	228	1015	654	314
78	390	172	312	109	133	101	273	234	1042	671	340
81	405	178	324	113	105	105	286	243	1082	697	380
