Swivel Forerunners

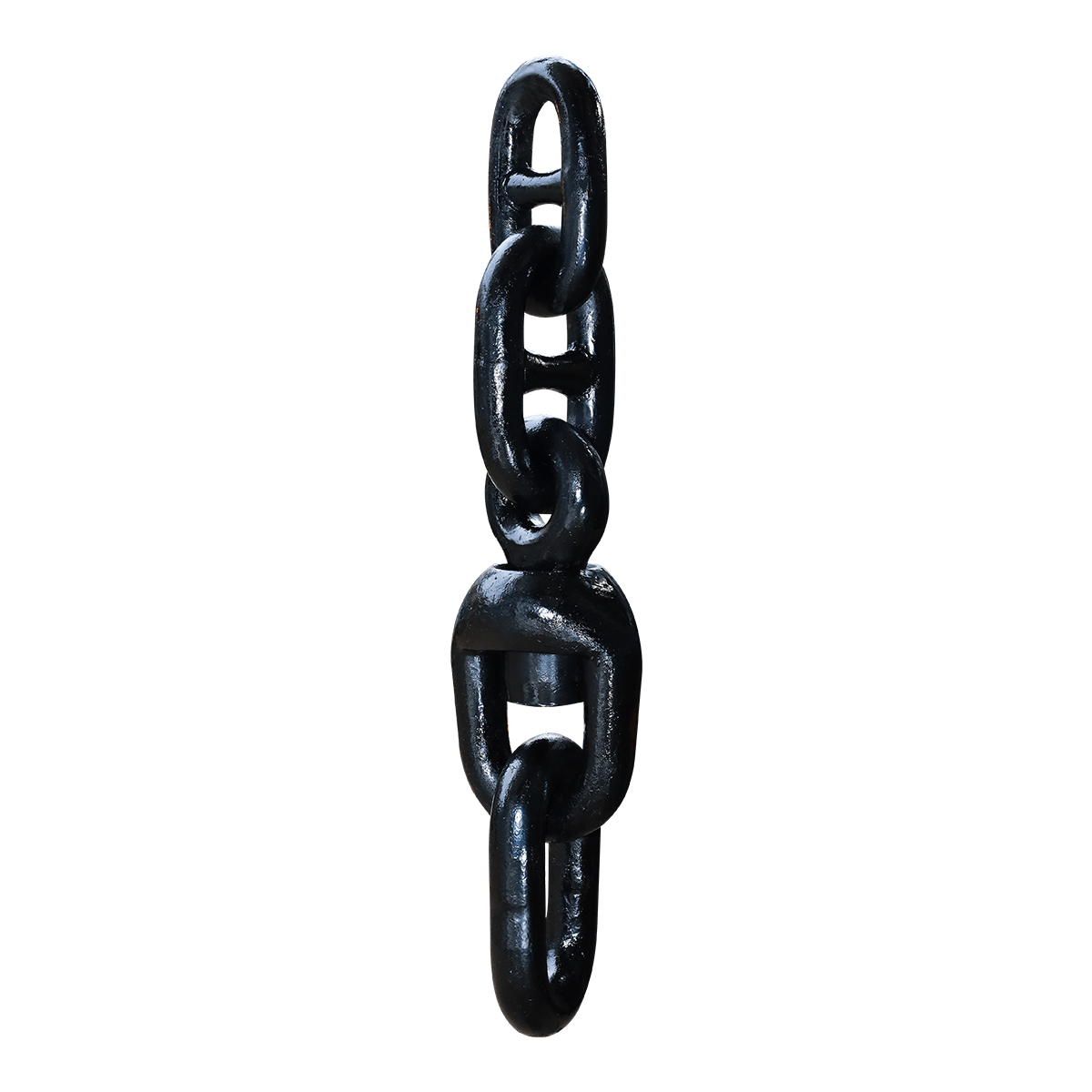

Swivel Forerunners, Grade 3, size ranging from 30 mm to 102 mm

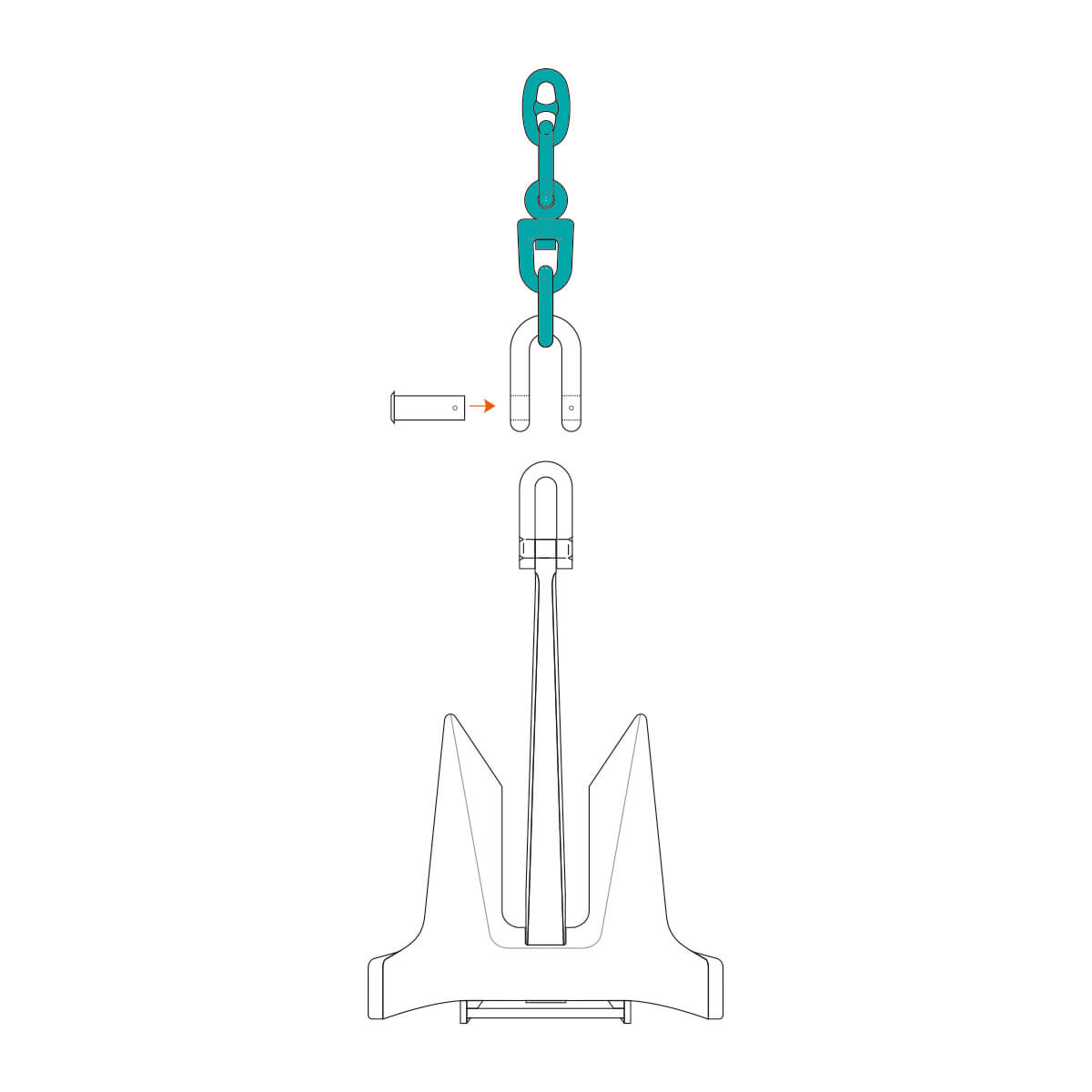

Various swivel forerunner types are used on board depending on the yard’s selection and position of the deck machinery and the chain stopper. While all swivel forerunners start with an end link and continue with a swivel piece, they continue with an enlarged link and single or multiple common links. Our focus is always on meeting customer demands, so we keep all types of swivel forerunners in stock in different sizes.

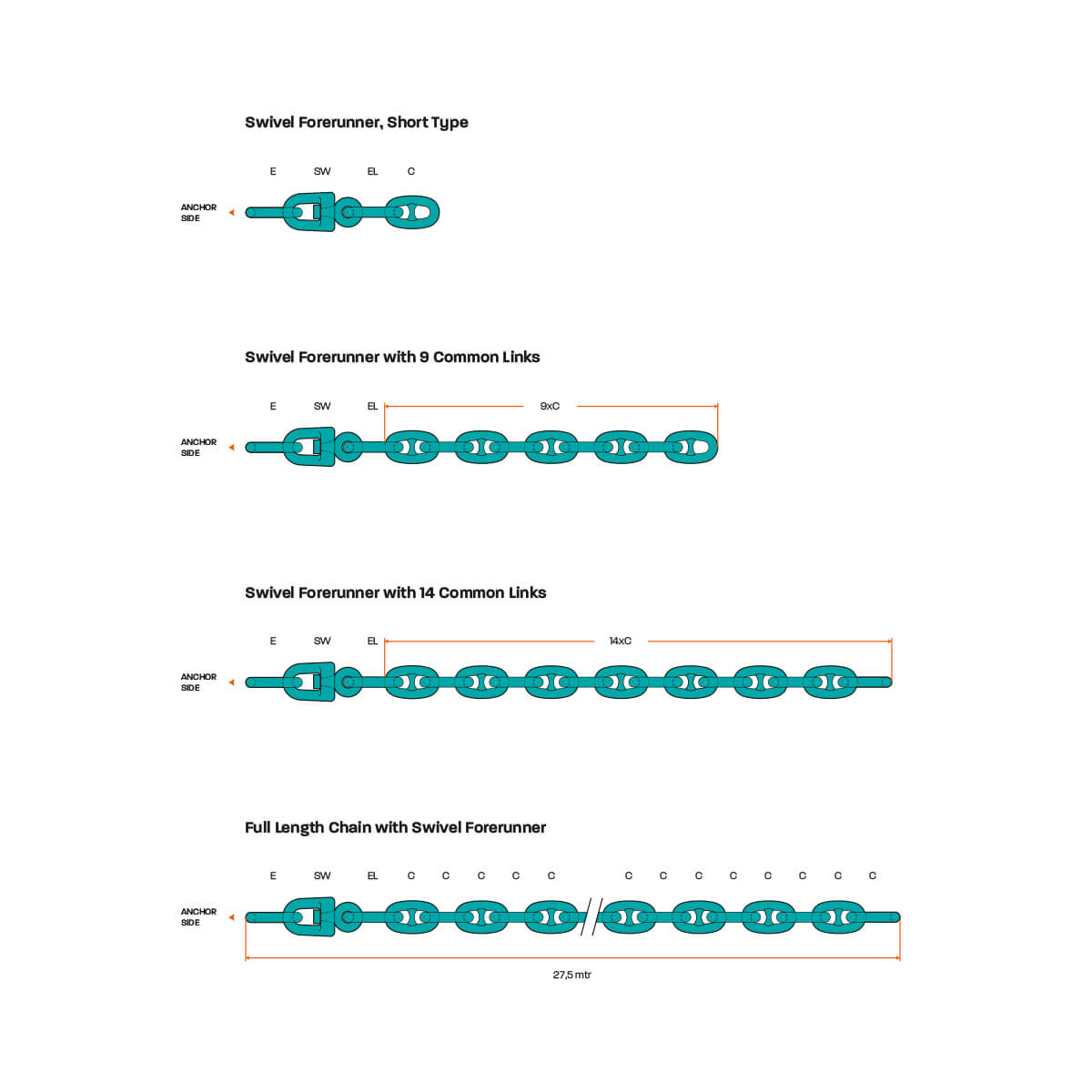

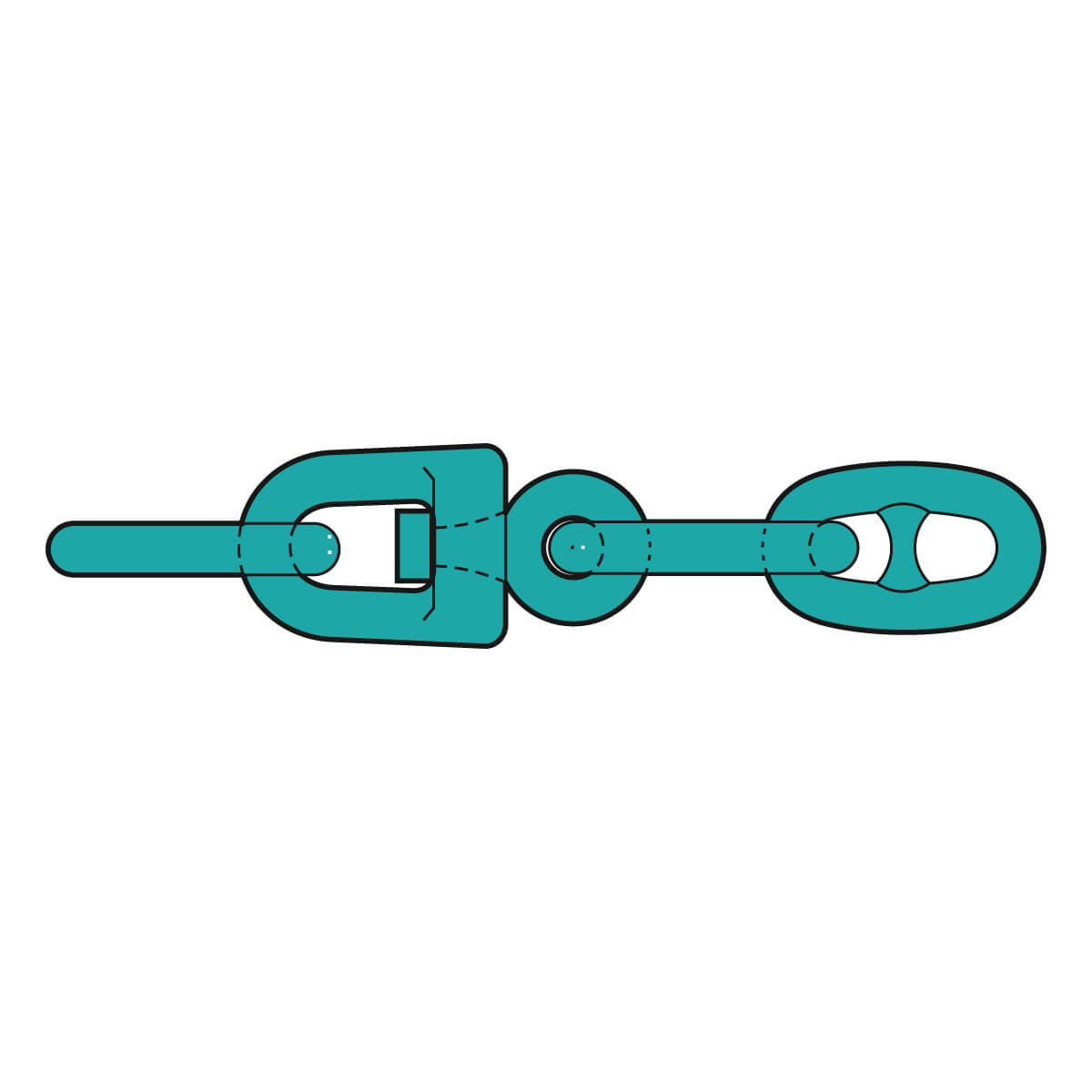

Short Swivel Forerunners, E+SW+EL+C
Swivel Forerunners with 9 Common Links, E+SW+EL+9C
Swivel Forerunners with 14 Common Links, E+SW+EL+14C
Full-Length Anchor Chain (27.5 mtr) with Swivel Forerunner, E+SW+EL+C…C

Technical Data

Nominal Size (mm)	Common Link (kg)	End Link (kg)	Enlarged Link (kg)	Swivel Piece (kg)	Kenter Shackle (kg)	27.5 mtr Chain (kg)
30	2.48	3.74	3.58	9	4.15	563
32	2.98	4.74	4.45	10.03	5.06	635
34	3.54	5.54	5.21	12.75	6.01	712
36	4.23	6.95	5.99	14.96	6.89	800
38	4.96	7.66	6.15	17.44	8.4	888
40	6.04	8.2	8.01	20.25	9.63	1033
42	6.65	9.92	9.04	25.4	11	1084
44	7.73	11.42	10.25	26.6	12.45	1197
46	8.8	13.92	11.54	30.67	14.1	1310
48	10.06	15.67	14.44	35	16.7	1438
50	11.28	17.7	16.06	40.5	19	1546
52	12.68	18.97	17.85	49.5	20.3	1661
54	14.1	20.84	19.6	50.5	23.7	1791
56	15.66	23.55	21.69	55	26.7	926
58	17.83	25.95	24	64.6	27.2	2086
60	19.9	28.48	26	71.3	27.7	2249
62	21.66	30.81	28.63	77.7	35	2361
64	23.51	32.7	31.13	83.3	38.4	2516
66	25.98	38.4	35	88.7	42.3	2676
68	28.6	39.5	39.72	100	46	2885
70	31	43.8	43.33	107.8	48.7	3010
73	35.2	49	48.3	125.6	53	3274
76	39.9	57.1	53.6	143.8	60.7	3548
78	43	62.3	59.6	154	65.5	3737
81	48.6	67.4	66	188	75	4030
84	53.5	74.4	69	198	90	4334
87	58.9	84.6	81.1	215	96	4650
90	66.35	91	88	238	108	4976
92	71.22	100	97.5	252	114	5199
95	78.08	109	101	269	128	5544
97	83.77	117	107	301	133	5780
100	89.03	127	120	330	146	6143
102	95.5	134	130	344	158	6398
