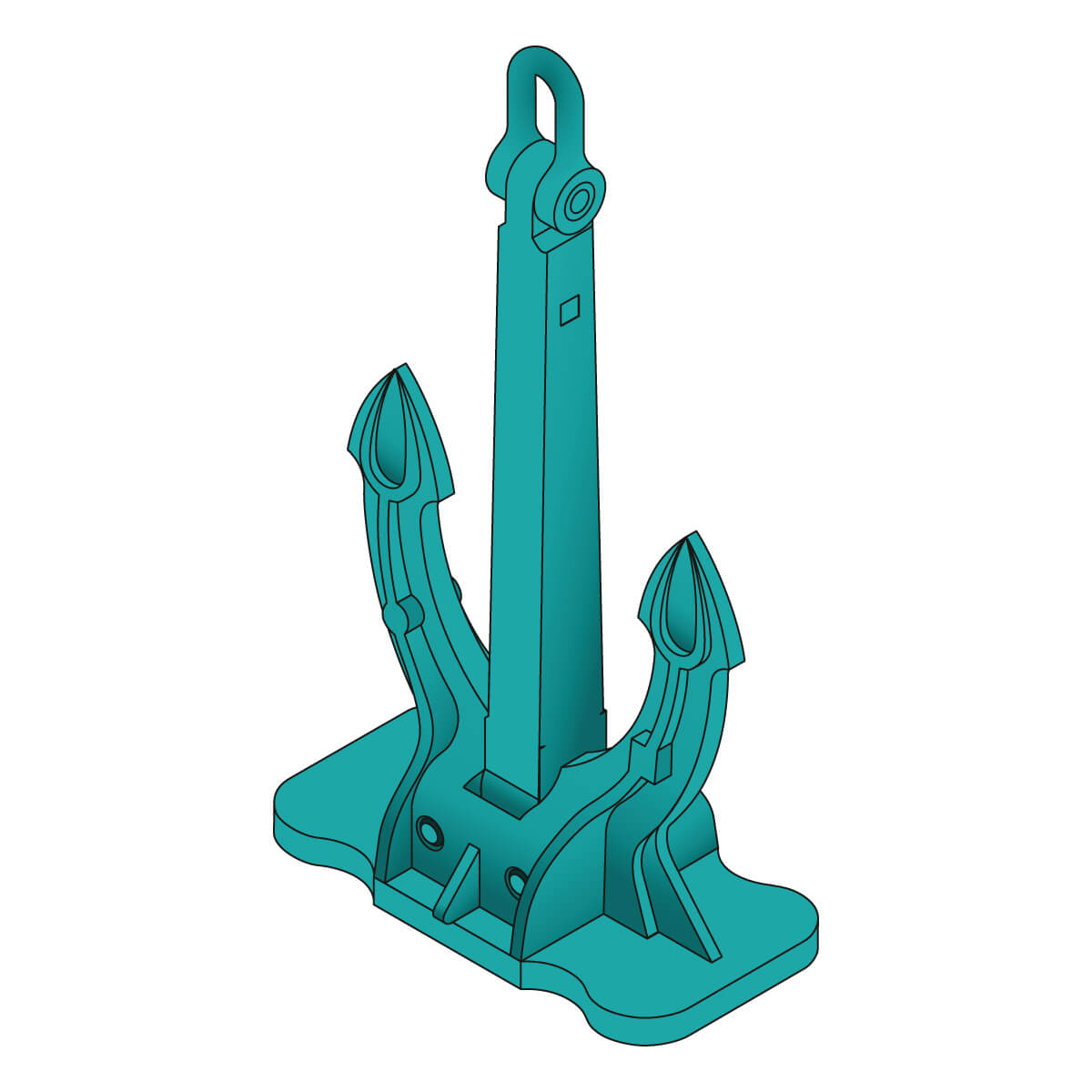

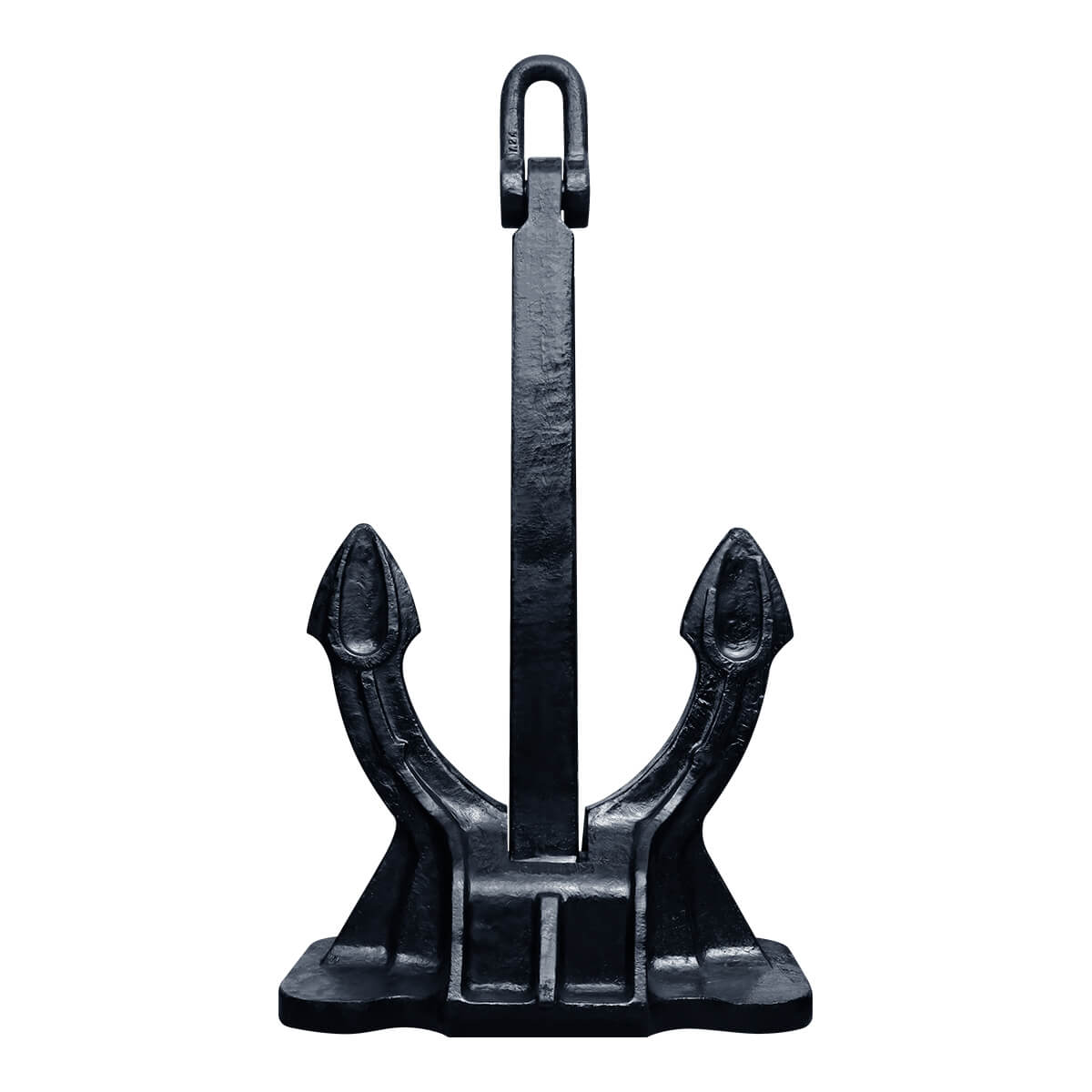

Spek Anchor

Spek Stockless Anchors, weight ranging from 4.050 kgs to 13.500 kgs

Category: Anchors

Spek anchors are described as ordinary stockless anchors and are one of the most popular products used on board. They are the second most used anchors in the commercial fleet after AC-14 Anchors. Therefore, we invest in and prefer to keep their stock up to 13.500 kg, certified by DNV and ABS, and manufactured according to IACS standards.

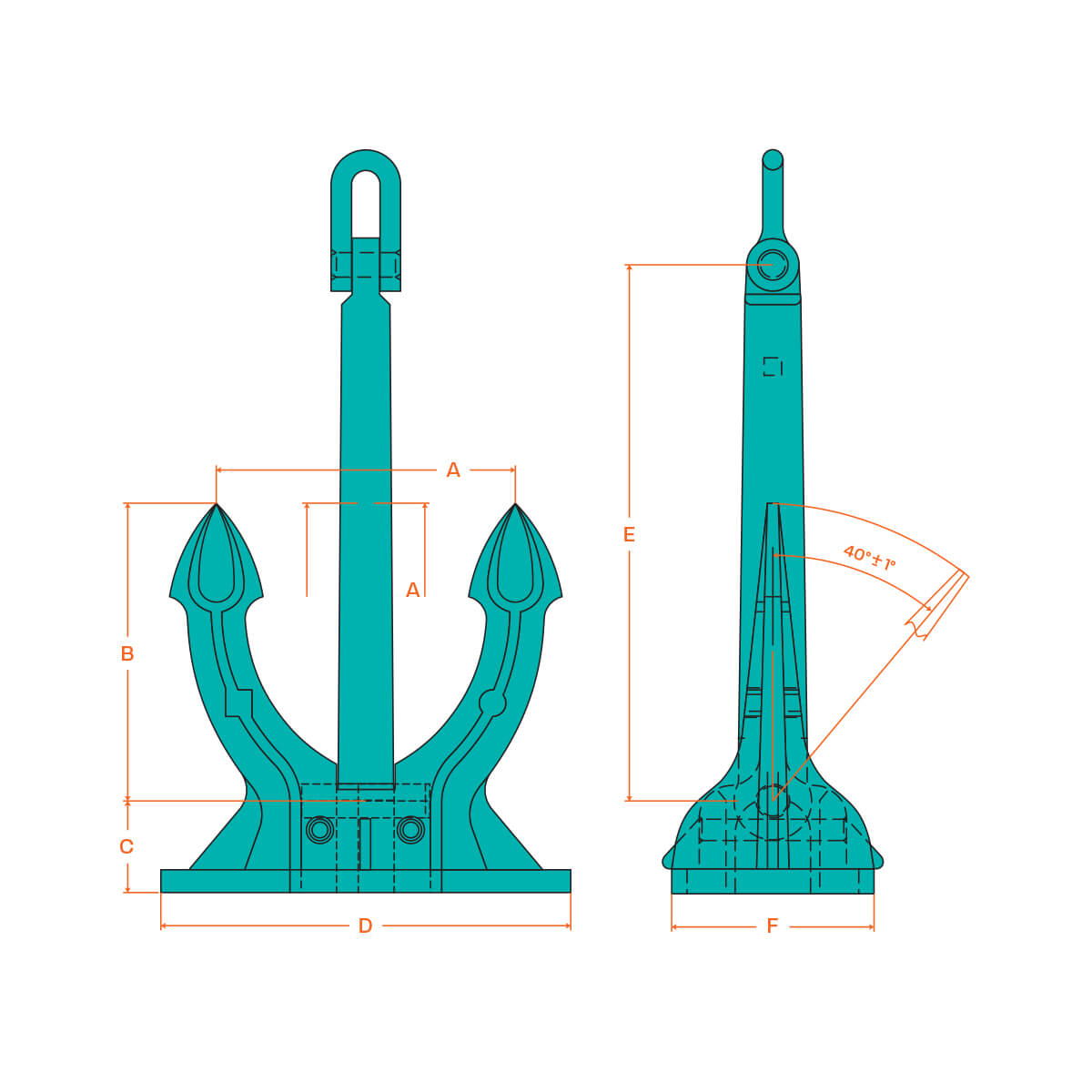

Technical Data

Weight	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Proof Load	Chain Size
4050 kg	1350	1350	408	1850	2400	917	581 kN	50 mm
4320 kg	1400	1400	435	1925	2520	920	606 kN	50 mm
4590 kg	1400	1400	448	1926	2520	925	630 kN	52 mm
4890 kg	1400	1400	460	1926	2520	955	652 kN	54 mm
5250 kg	1450	1450	436	2000	2610	965	681 kN	56 mm
5610 kg	1450	1450	448	2000	2610	981	707 kN	58 mm
6000 kg	1500	1500	481	2060	2700	1006	735 kN	60 mm
6450 kg	1500	1500	496	2060	2700	1028	764 kN	62 mm
6900 kg	1550	1550	486	2140	2890	1035	794 kN	64 mm
7350 kg	1550	1550	506	2138	2890	1062	829 kN	66 mm
7800 kg	1550	1550	516	2138	2920	1091	861 kN	68 mm
8300 kg	1700	1700	530	2335	3060	1125	900 kN	70 mm
8700 kg	1700	1700	530	2332	3060	1260	929 kN	73 mm
9300 kg	1700	1700	550	2332	3060	1260	968 kN	76 mm
9900 kg	1700	1700	550	2332	3160	1125	1004 kN	78 mm
10500 kg	1770	1770	531	2440	3190	1188	1040 kN	78 mm
11100 kg	1770	1770	531	2440	3190	1188	1074 kN	81 mm
11700 kg	1770	1770	531	2440	3390	1188	1098 kN	84 mm
12300 kg	1910	1910	593	2632	3440	1279	1122 kN	87 mm
12900 kg	1910	1910	605	2632	3440	1289	1154 kN	87 mm
13500 kg	1910	1910	605	2632	3440	1316	1160 kN	90 mm

Related Products

Request Form

Please note! Please fill in the form below so we can send you our best offer right away!

Spek Anchor

Technical Data

Related Products

AC-14 Anchor

Anchor D-End Shackle

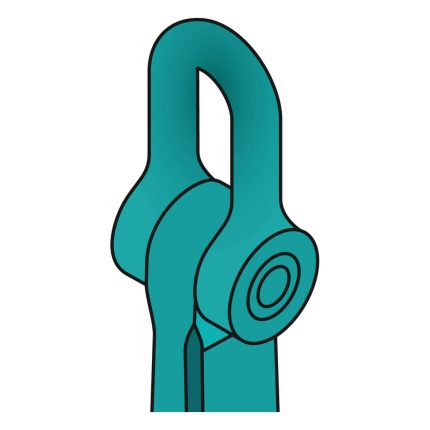

Crown Shackle
