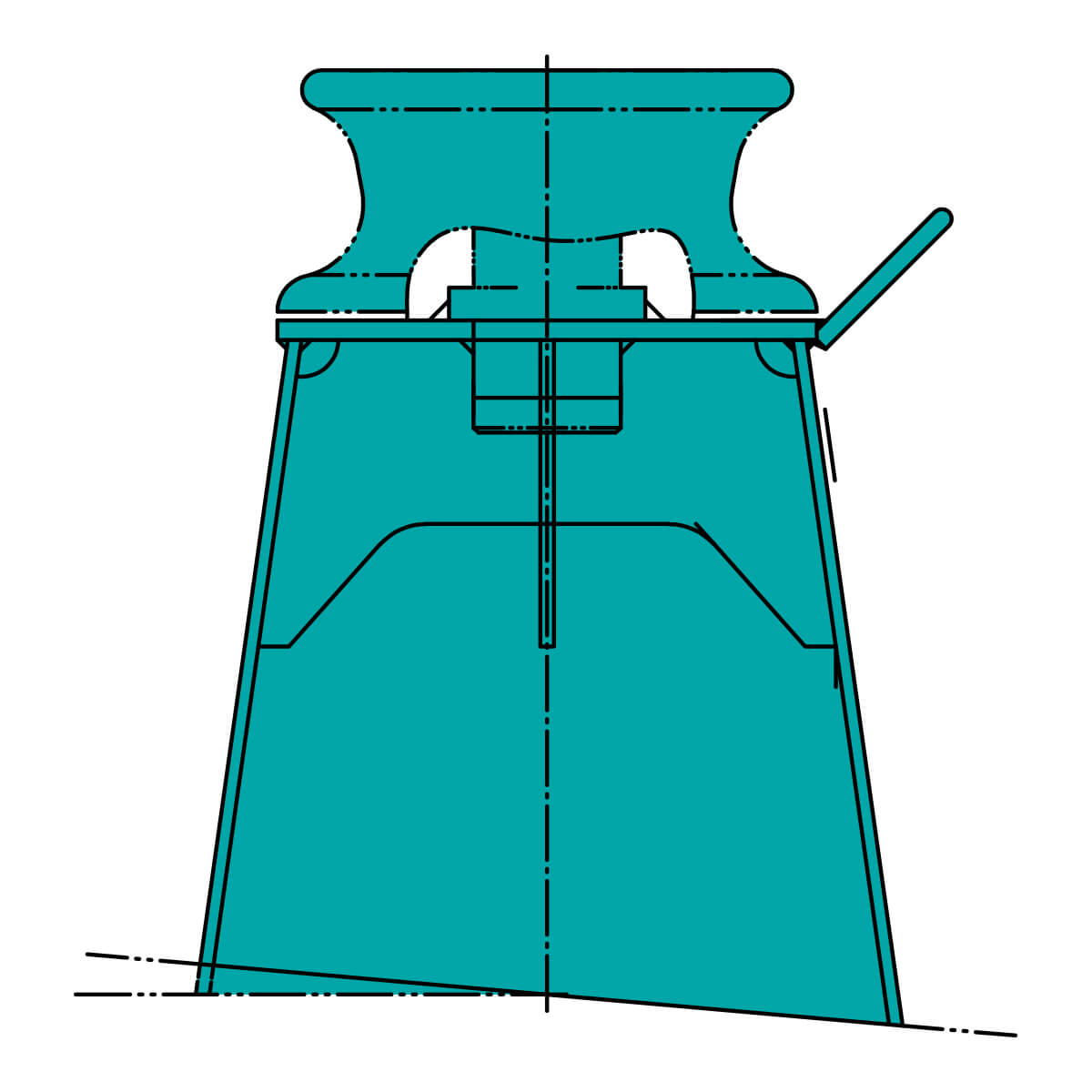

Pedestal Fairleads and Steel Rollers

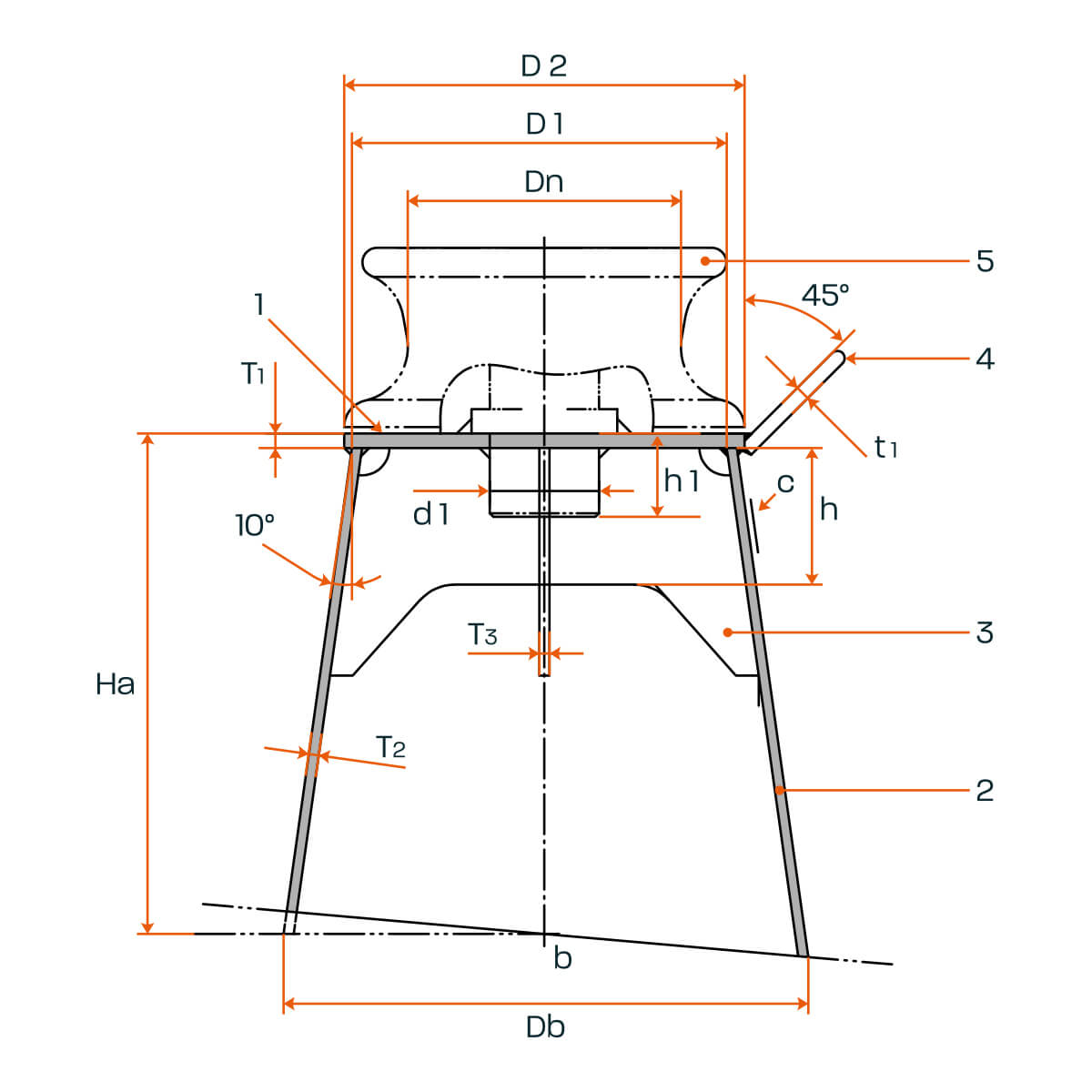

PEDESTAL FAIRLEADS (ISO 13755) WITH STEEL ROLLERS (ISO 13776)

1	Top plate	5	Steel roller (ISO 13755)	Ha	To be determined in accordance with the onboard requirements
2	Body	6	Axle	Db	To be determined in accordance with the height of the pedestal
3	Reinforcement	7	Bush	c	SWL marking
4	Rope guide

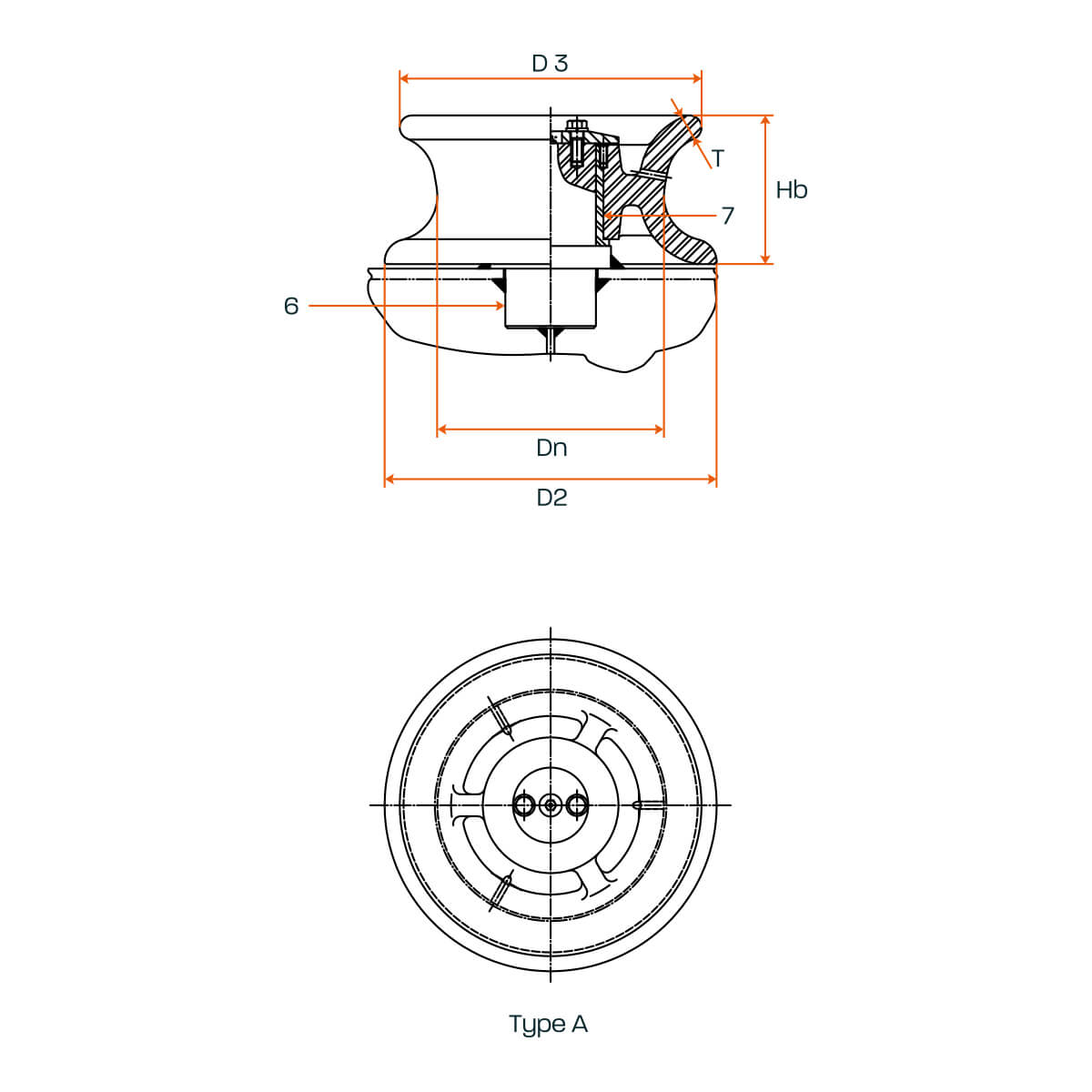

Rollers are used to guide and change the direction of mooring ropes while minimizing friction and surface wear. They ensure smooth rope handling and prevent damage under high tension during mooring operations.

At Adamar Anchor & Chain, we keep various sizes of ISO 13776-type class-certified steel rollers readily available in our stock for immediate delivery.

The pedestals, fabricated according to ISO 13755, are manufactured in our ABS-certified Adamar Workshop, where we complete the full assembly and welding process to deliver ready-to-install mooring fairleads.

Technical Data

DIMENSIONAL TABLE (mm)
Dn	D1	D2	D3	T	T1	T2	T3	t1	Hb	h	h1	d1	SWL 90*
200	288	300	280	26	20	12	20	20	157	200	100	93.5	45 t
250	357	370	340	30	22	12.5	22	22	177	200	100	113.5	59 t
300	417	430	400	32	24	13	24	24	197	225	125	119.5	74 t
350	472	490	460	34	26	17	26	26	217	225	125	130.5	106 t
400	540	560	520	36	28	18	28	28	237	250	150	152.5	127 t
450	600	620	590	38	30	20	30	30	257	250	150	164.5	163 t
