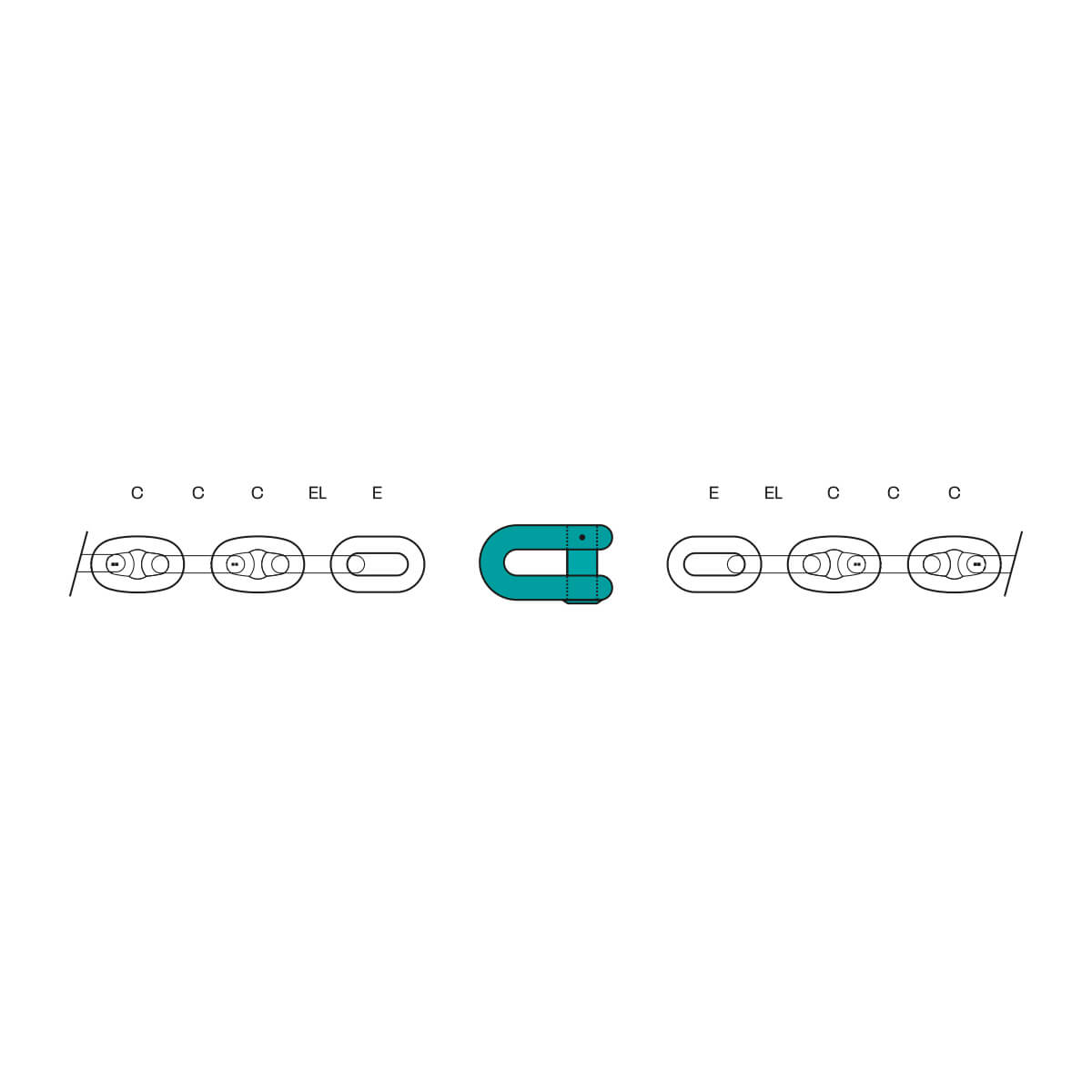

Not many, but some vessels use D-Type Joining Shackles to connect the anchor chain sections. However, D-Type Joining Shackles require special chain arrangements ending with Enlarged Links (EL) and End Links (E) on both ends. Hence, these arrangements must be ordered a few months before the desired delivery date.

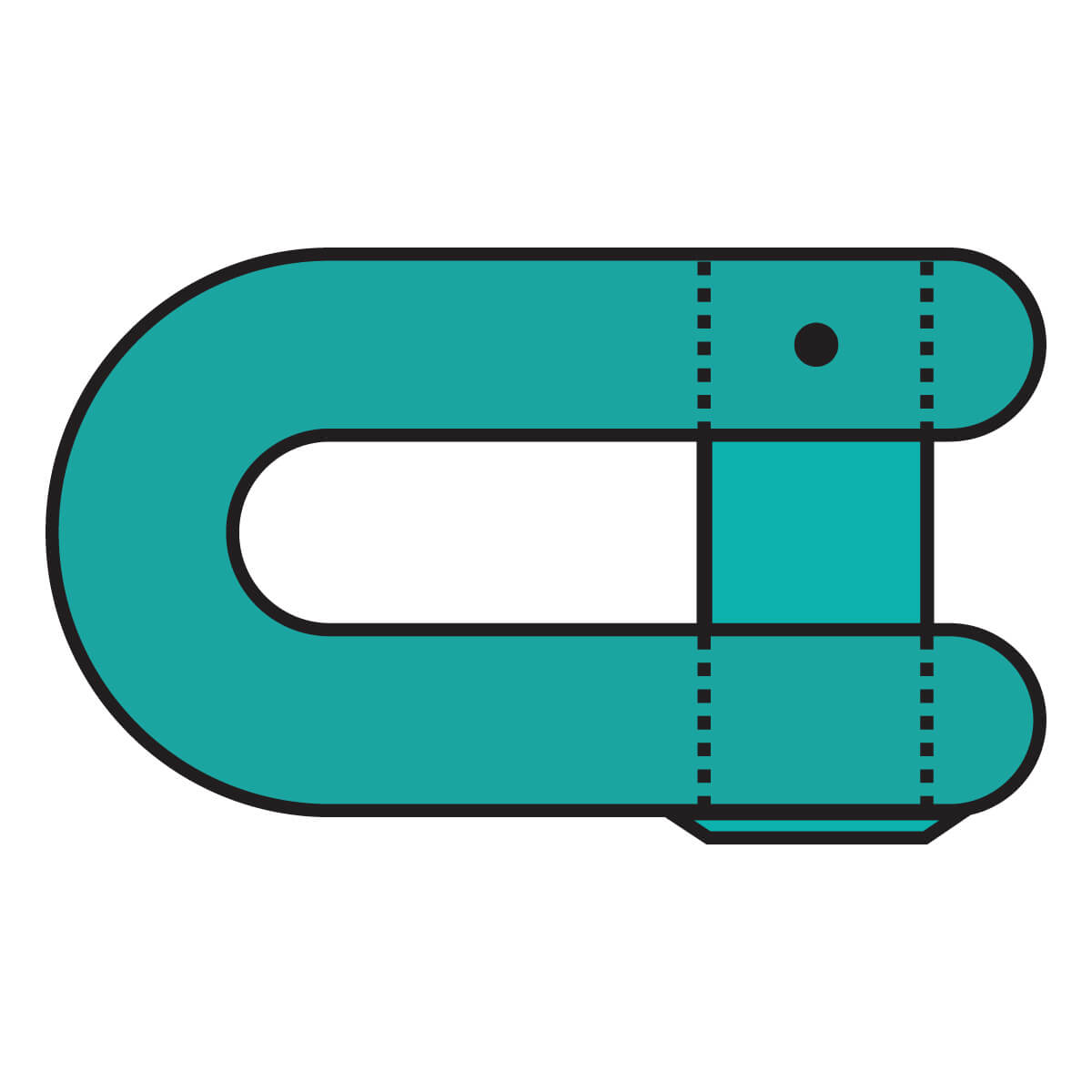

D-Type Joining Shackles

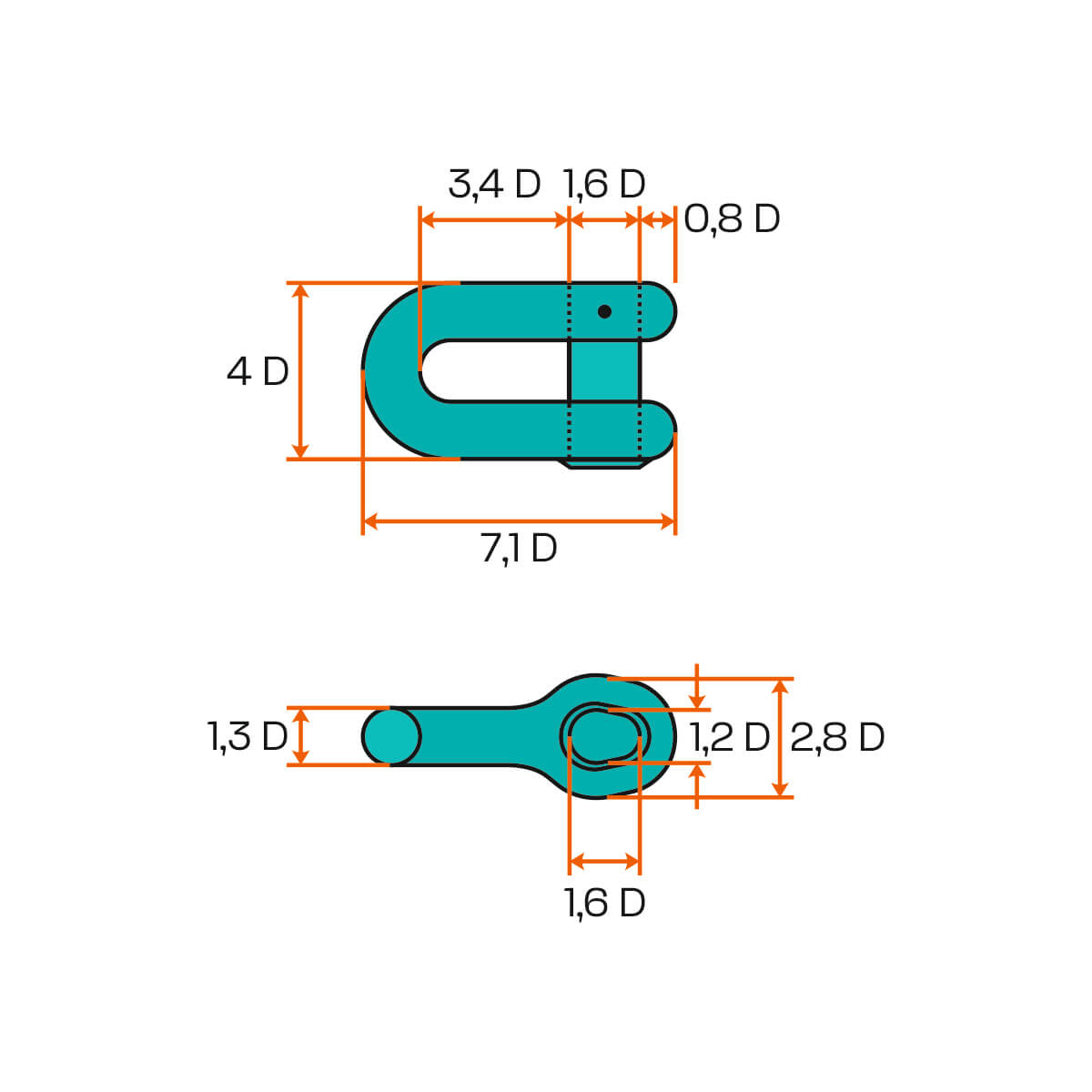

Technical Data
| Nominal Size (mm) | Weight (kg) |
|---|---|
| 30 | 6.3 |
| 32 | 8.2 |
| 34 | 9.6 |
| 36 | 11.3 |
| 38 | 13.5 |
| 40 | 15.5 |
| 42 | 18.1 |
| 44 | 20.3 |
| 46 | 23.3 |
| 48 | 27.5 |
| 50 | 31.6 |
| 52 | 34.0 |
| 54 | 38.5 |
| 56 | 46.0 |
| 58 | 46.8 |
| 60 | 51.0 |
| 62 | 59.2 |
| 64 | 62.7 |
| 66 | 75.0 |
| 68 | 76.7 |
| 70 | 90.0 |
| 73 | 95.0 |
| 76 | 107.0 |
| 78 | 116.0 |
| 81 | 130.0 |
| 84 | 136.0 |
| 87 | 160.0 |
| 90 | 176.0 |
| 92 | 196.0 |
| 95 | 215.0 |
| 97 | 222.0 |
| 100 | 252.0 |
| 102 | 267.0 |
