Crown Shackle

Category: Anchors

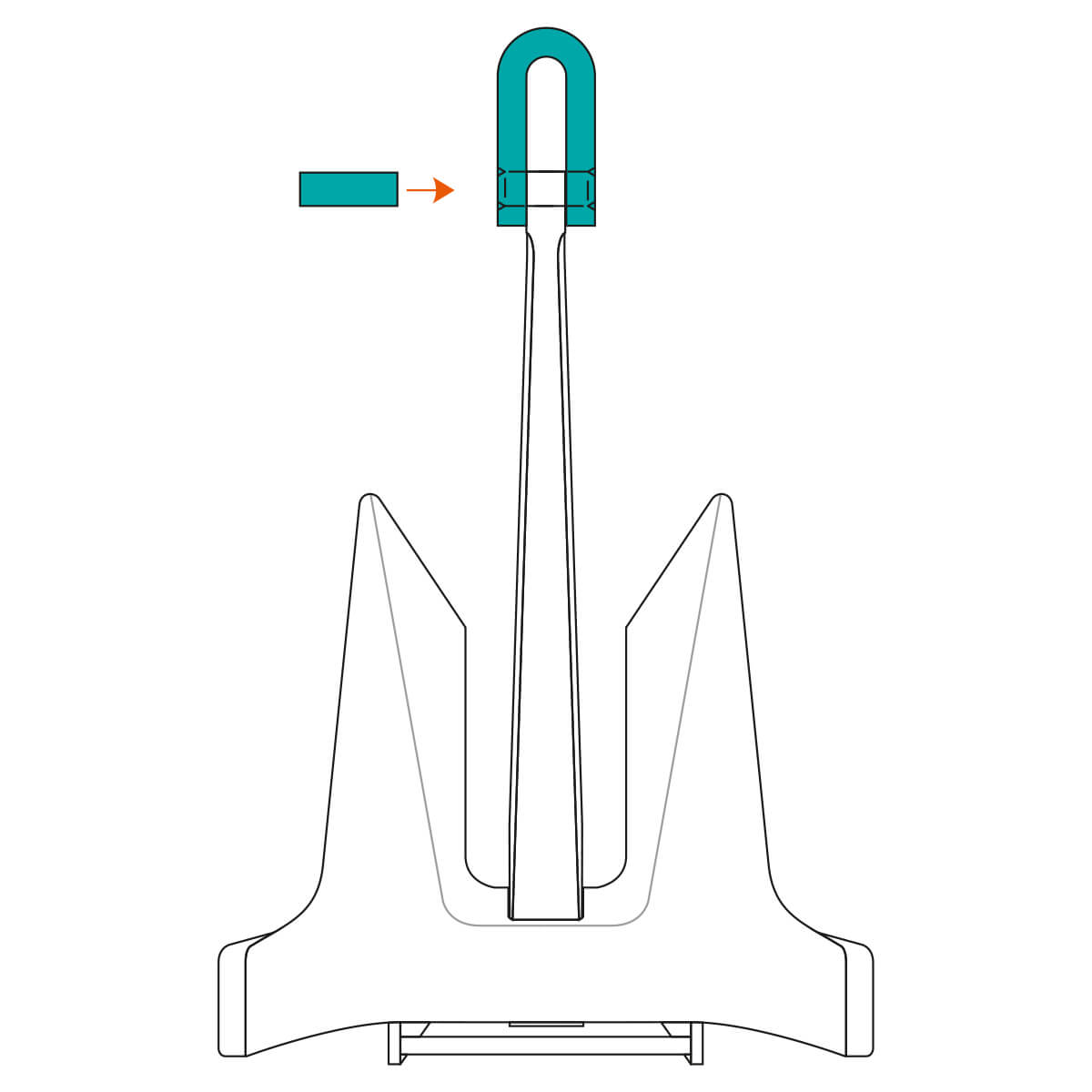

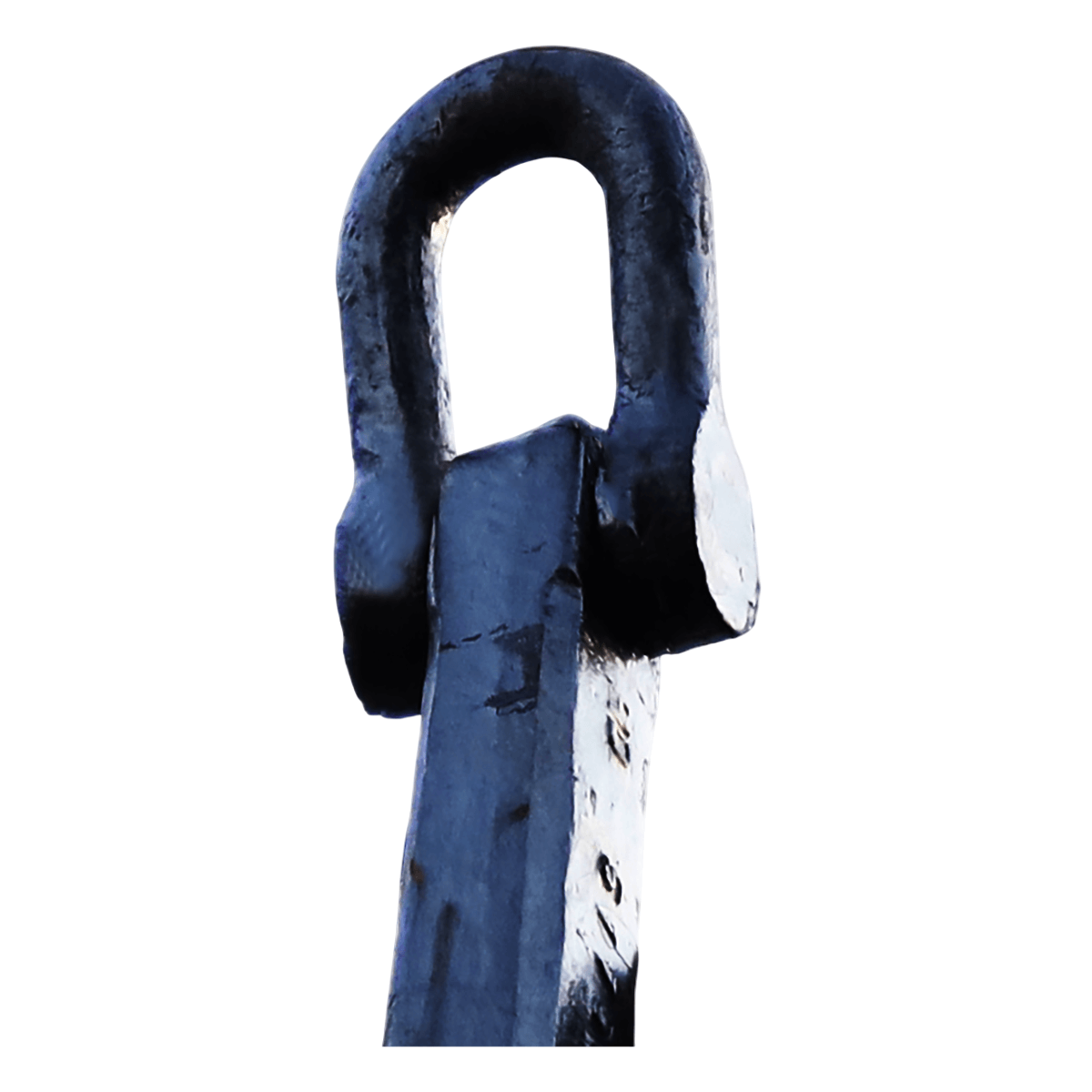

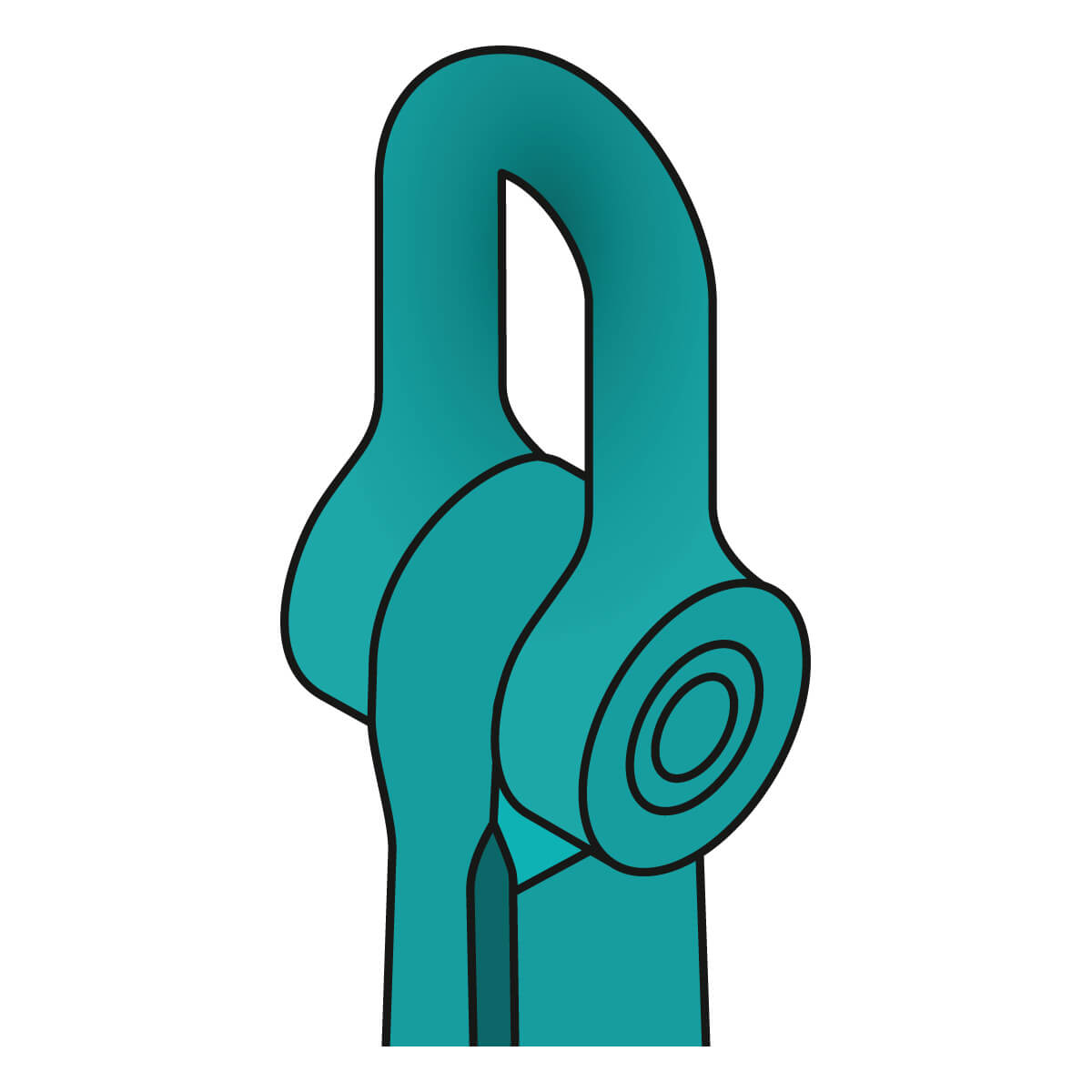

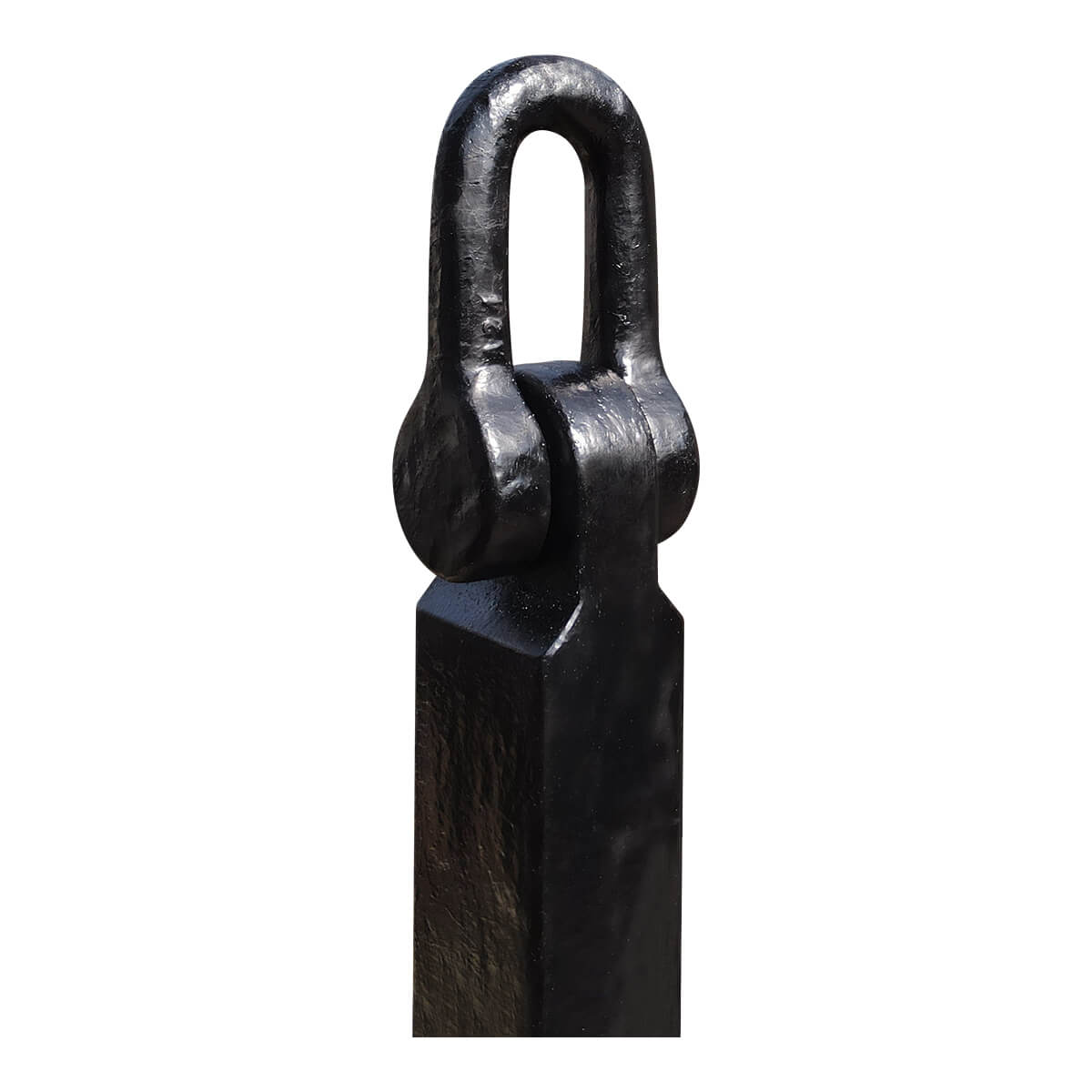

The Crown Shackles, also known as Anchor Pins, are the D-shackles permanently connected to the anchor’s shank, where the anchor chain is connected to the anchor.

As excessive wear is measured on the anchor chains, it is sometimes measured on the crown shackles. In such cases, the class surveyors oblige owners to renew the crown shackles. If the crown shackle can’t be sourced, the complete anchor must be renewed, and it costs a significant amount compared to the renewal of only the crown shackle. To provide a cost-effective solution to our customers, Adamar Anchor & Chain keeps various types of crown shackles in its stock with DNV certificates.

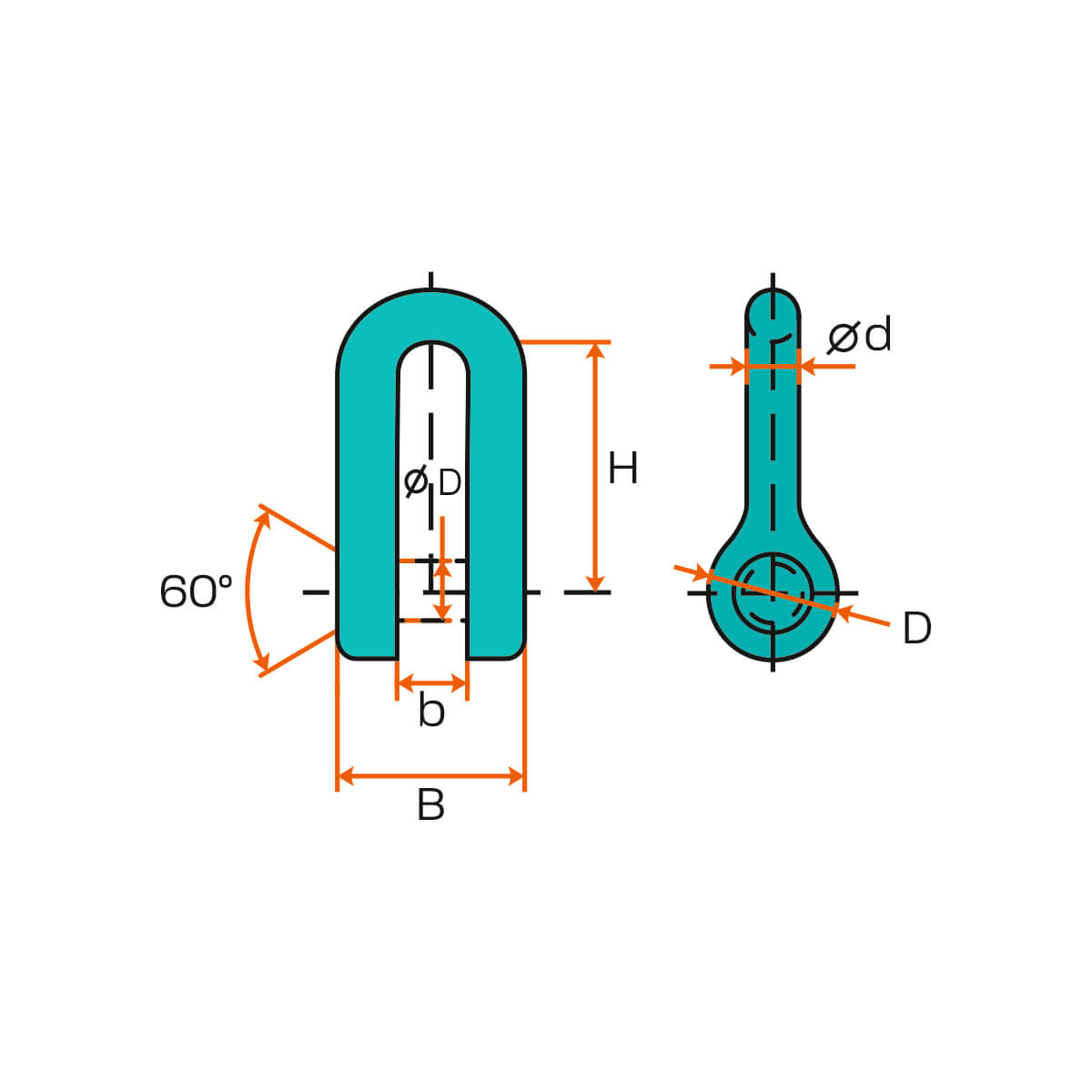

Technical Data

SIZE	B	b	D	d	D	H	Proof Load
A24	380 mm	160 mm	130 mm	110 mm	275 mm	500 mm	877 kN
A25	400 mm	170 mm	140 mm	115 mm	280 mm	540 mm	949 kN
A26	415 mm	175 mm	145 mm	120 mm	290 mm	580 mm	1010 kN
A27	440 mm	190 mm	150 mm	130 mm	320 mm	585 mm	1074 kN
A28	455 mm	195 mm	155 mm	135 mm	330 mm	630 mm	1122 kN
