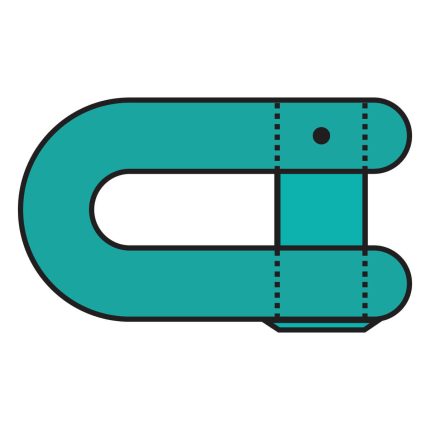

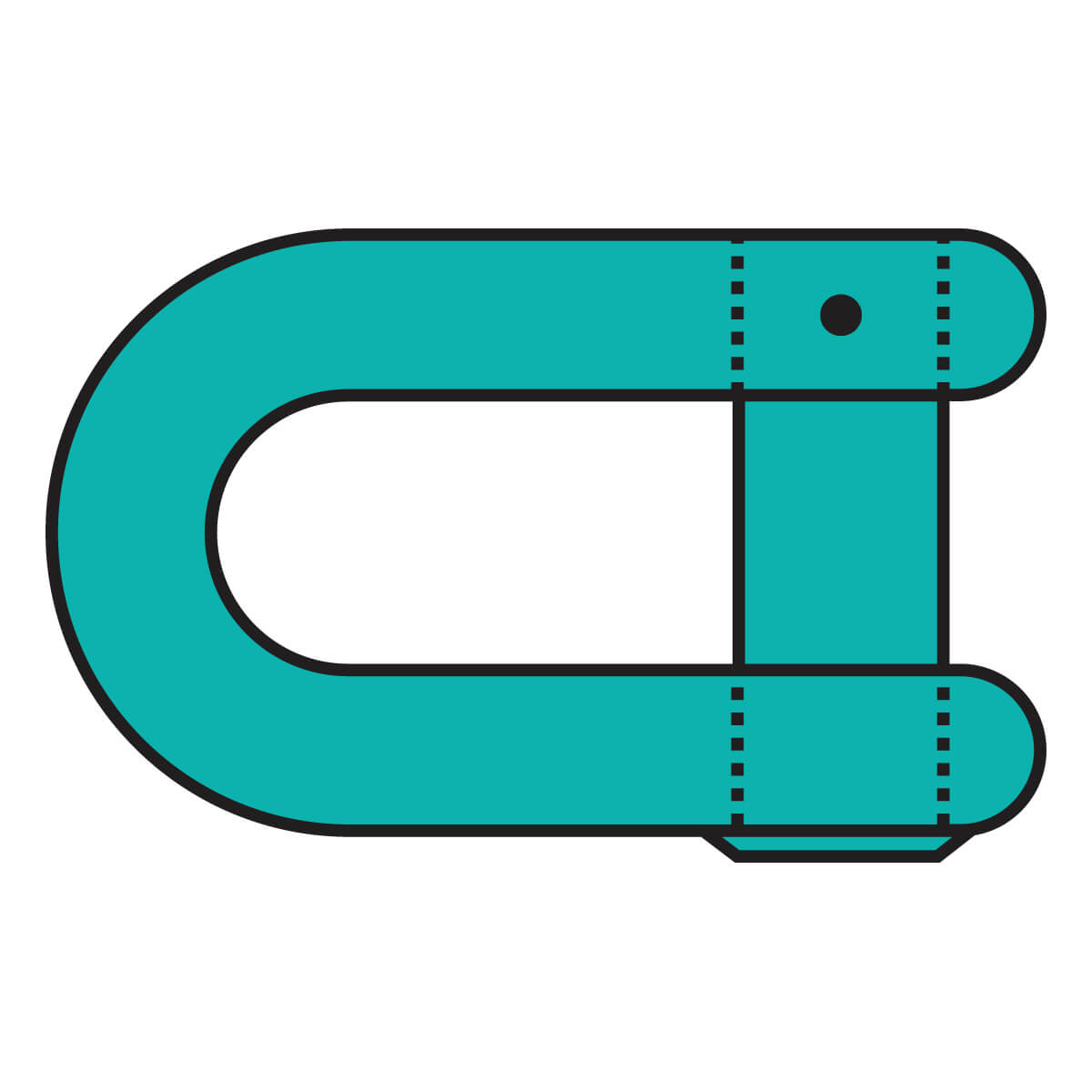

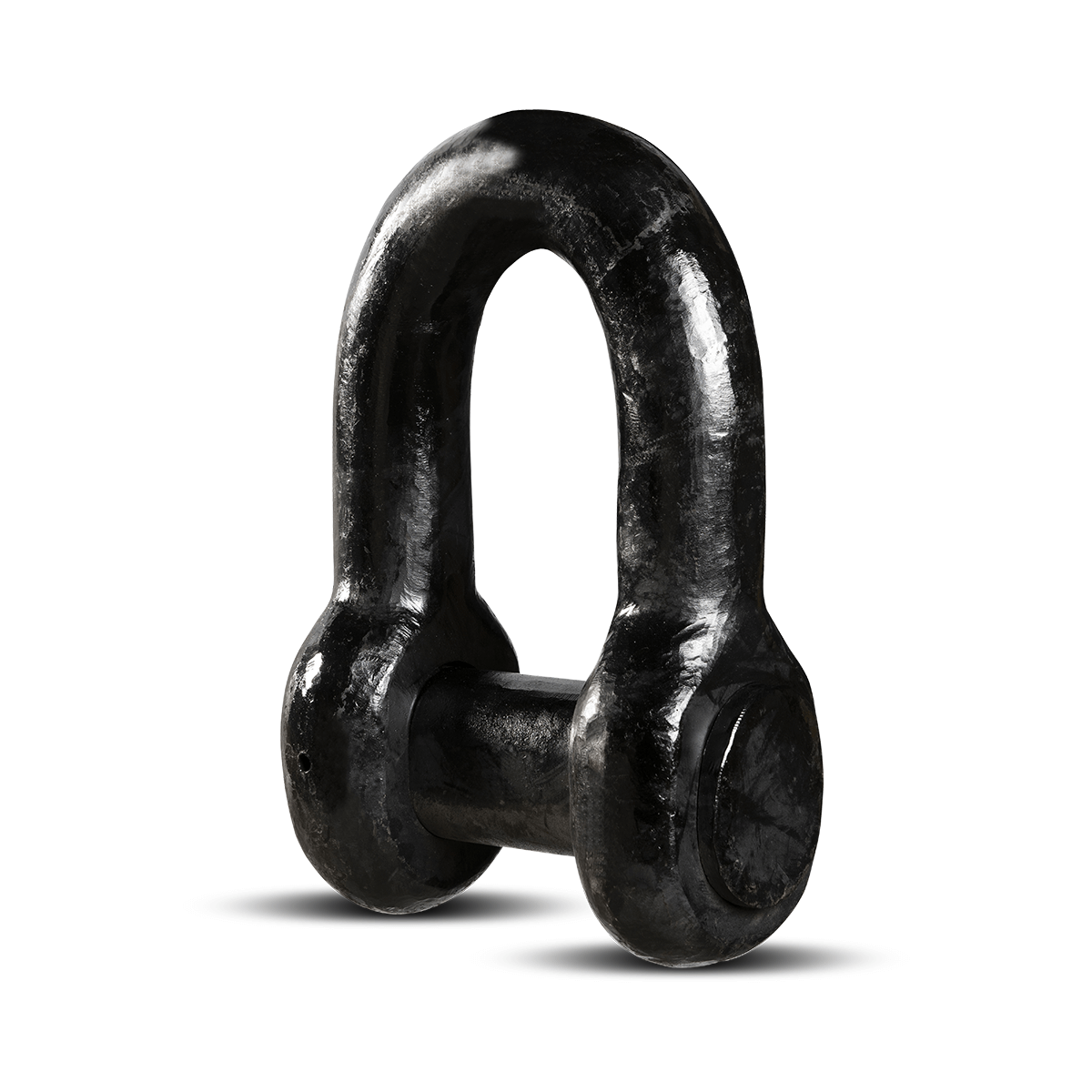

Anchor D-End Shackle
Anchor D-End Shackles, Grade 3, size ranging from 30 mm to 102 mm

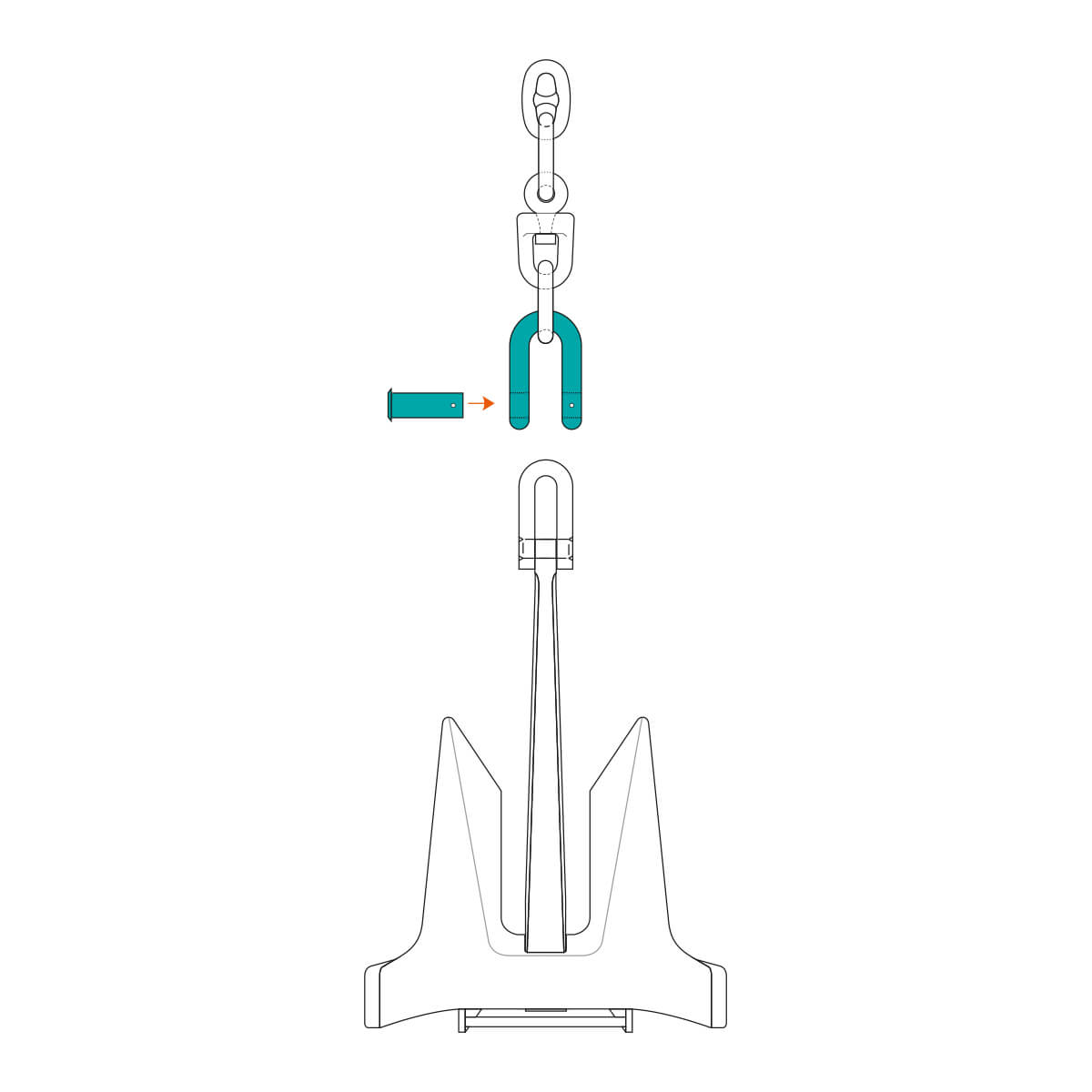

They connect the anchor to the chain cable between the Crown Shackle and the End Link (E). Like the other accessories, Adamar Anchor & Chain offers Anchor D-End shackles in all sizes between 30 mm and 102 mm.
Customers frequently mix crown Shackles and Anchor D-end shackles. Just a tip to identify them: Crown Shackles are permanently connected to the anchors, and their pins are round. However, Anchor D-end shackles have oval pins, and they are removable.

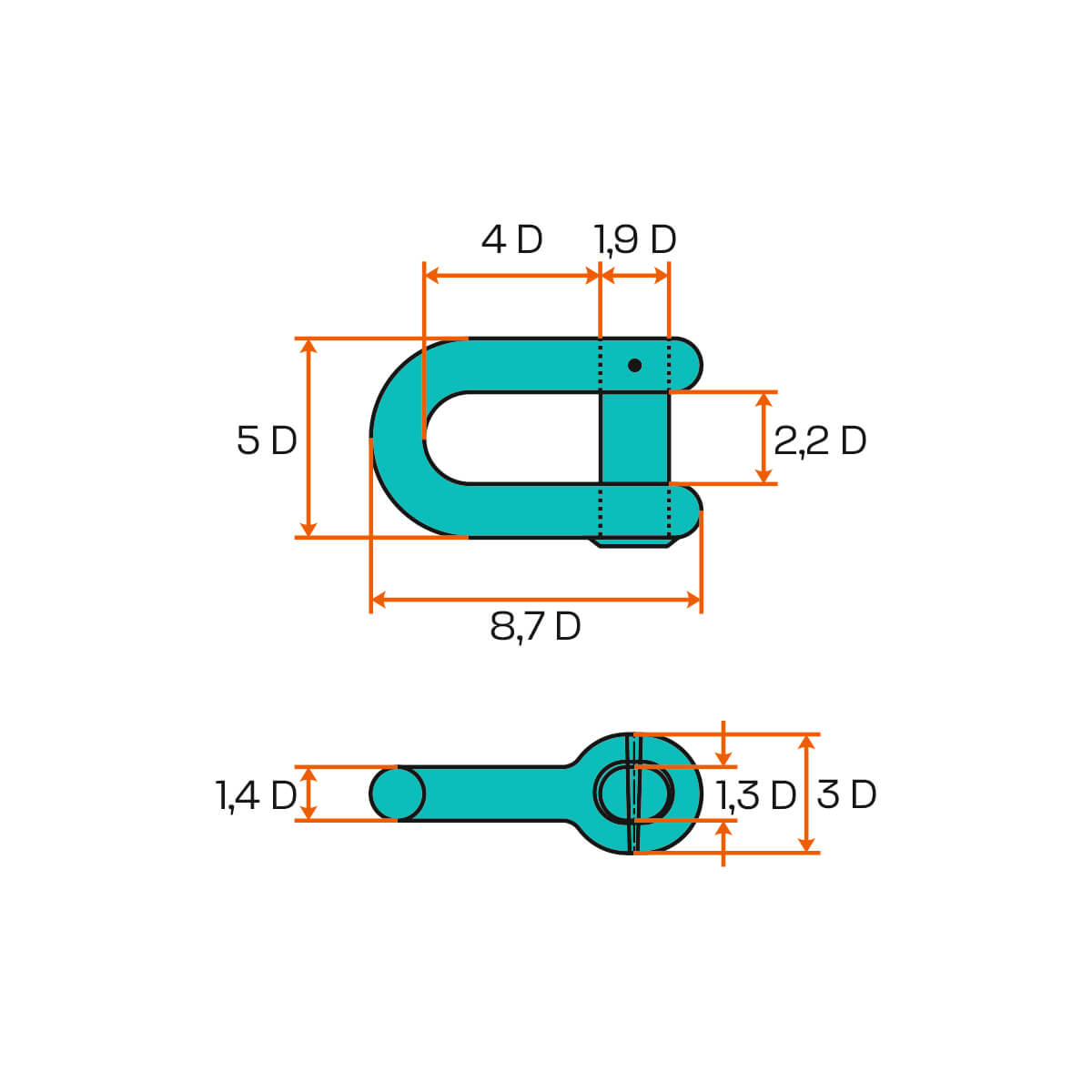

Technical Data
| Nominal Size (mm) | Weight (kg) |
|---|---|
| 30 | 10.0 |
| 32 | 11.8 |
| 34 | 14.2 |
| 36 | 16.6 |
| 38 | 19.6 |
| 40 | 22.8 |
| 42 | 26.0 |
| 44 | 29.7 |
| 46 | 34.3 |
| 48 | 38.0 |
| 50 | 45.2 |
| 52 | 50.9 |
| 54 | 53.8 |
| 56 | 63.0 |
| 58 | 70.0 |
| 60 | 77.5 |
| 62 | 86.3 |
| 64 | 96.3 |
| 66 | 99.6 |
| 68 | 102.6 |
| 70 | 126.2 |
| 73 | 138.2 |
| 76 | 146.0 |
| 78 | 164.0 |
| 81 | 190.0 |
| 84 | 212.0 |
| 87 | 237.0 |
| 90 | 245.0 |
| 92 | 257.0 |
| 95 | 300.0 |
| 97 | 335.0 |
| 100 | 353.0 |
| 102 | 378.0 |
